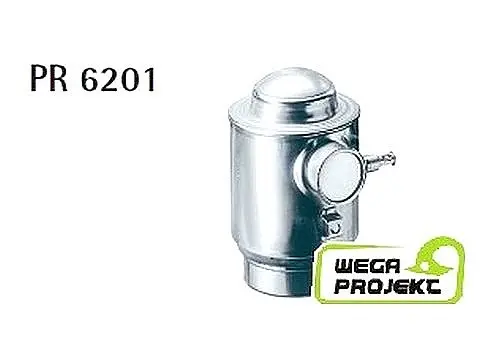

PR 6201 Dual Bridge Compression Load Cell
The PR 6201 NDB range of load cells is specially designed for weighing silos, tanks and process vessels. 100....520 t
TECHNICAL SPECIFICATIONS
- Nominal capacity range from 100t to 520t
- Made for chemical plants with SIL-systems
- Dual bridge load cell
- Duplicated pair of strain gauges with two adjustment chambers
- Resistant against vibrations and high temperatures
- High overload capacities
- Ex-version available
- IP68, IP69
Typical order N.O class N
PR 6201/15NDB Dual Bridge Compression Load Cell 100t 1mV/V 200.0 12m 9405 262 01155
PR 6201/25NDB Dual Bridge Compression Load Cell 200t 1mV/V 270.0 12m 9405 262 01255
PR 6201/35NDB Dual Bridge Compression Load Cell 300t 1,5mV/V 270.0 12m 9405 262 01355
PR 6201/520t LDB Dual Bridge Compression Load Cell 520t 2.6mV/V 220.0 12m 9405 262 01555
Typical order N.O class N for Ex zone
PR 6201/15NDB E Dual Bridge Compression Load Cell 100 t 1mV/V 200.0 12m 9405 662 01155
PR 6201/25NDB E Dual Bridge Compression Load Cell 200 t 1mV/V 270.0 12m 9405 662 01255
PR 6201/35NDB E Dual Bridge Compression Load Cell 300 t 1.5mV/V 270.0 12m 9405 662 01355
PR 6201/520t LDB E Dual Bridge Compression Load Cell 520 t 2.6mV/V 220.0 12m 9405 662 01555
6201 NDB 100...520 t
PR 6201 Precision Compression Load Cell
Engineered specifically for high-capacity silos, tanks, and process vessels, the PR 6201 series offers exceptional performance in industrial weighing. When paired with FlexLock installation kits, their innovative design effectively counteracts displacements caused by thermal expansion or mechanical shifts in the supporting structure.
Beyond superior precision and consistency, these load cells are defined by their outstanding durability and long-term stability.
The combination of the pendulum support principle and a patented sensor geometry ensures optimal force transmission. This setup minimizes errors and grants the unit an expansive overload capacity, along with flawless linearity and repeatability.
To streamline operations, the entire measurement chain can be pre-adjusted without using reference weights. Thanks to "matched output" technology, faulty units can be replaced without re-calibrating the system, significantly reducing downtime during setup. Additionally, ATEX-certified versions are available for applications in hazardous, intrinsically safe environments.
