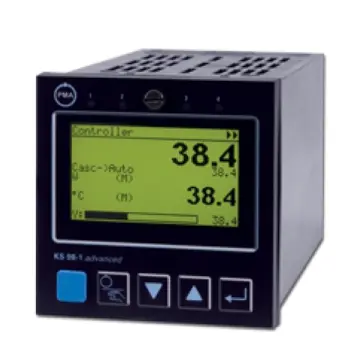

Multi-loop temperature controller KS 98-1

KS 98-1 provides a high resolution LCD display (160 x 80 pixels). Setpoints, current values or processed variables can be displayed using bar graphs or trend curves.
The device offers an extensive library of functions to satisfy specific needs from conditioning of analog signals to operations on output signals and cascade control.

Advantages and functions

• Front interface, graphical Engineering Tool and Simulation environment, parameter setting with BlueControl®
• Extended and improved operator functions
• All functions available in one device: regulation, calculation, sequencing, visualization, alarming
• Built-in analog and digital I / O
• I / O extension via CANopen or integrated modules

Technical data

• Dimension 96m x 96mm x 118mm, 1/4 DIN
• Connection Screw terminals
• Main input Universal (TC, RTD, DC linear V, DC linear mA / mV)
• Other inputs External setpoint, proportional input, potentiometer, Mathematical functions
• Maximum number of outputs 11
• Scan time 200 ms
• The number of segments > 1000
• Regulation type: Fully programmable. Includes two-state (on / off), continuous PID, three-step, cascade, proportional, etc.
• Power 24 V AC/DC, 90-250 VAC
• Communication: TTL, Modbus RS422/485, PROFIBUS DP
• Tightness of the panel: IP65
• Certifications CE, cULus, DIN EN 14597
• Software BlueControl Basic
• Engineering Tool ET/KS 98 Plus
• Downloader DL/KS 98-1
• Simulation SIM/KS 98
