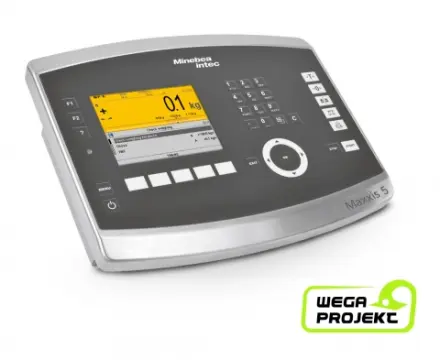

Maxxis 5 PR5900 Weighing PLC
The freely programmable process controller, designed for applications as diverse as Phase, Batching, Filling, IBC, Counting and Truck Weighing. Extensive connectivity options and compatibility with all analogue load cells and the digital Pendeo® load cells as well as platform scales and many more weighing solutions.
PRODUCT DETAILS
- Process Controller for the automated control of weighing processes with up to four scales
- Wide range of opportunities for flexible integration such as option cards, housings, W&M certification and EX approvals
- DAT, multilingual easy-operation interface, backup function, service reports, simulation
- BASIC application with weighing, check and remote terminal function
- With an additional license: internal alibi memory, OPC server, tilt correction
- Supplied with Ethernet TCP | IP, Modbus TCP, RS232, RS485, USB, SD Card
The Maxxis 5 from Minebea Intec Intec combines accuracy, connectivity and functionality to provide a process controller unlike any other. Specifically designed to solve many of the problems faced by today’s manufacturers, the Maxxis 5 easily takes control of all modern automation processes.
As a multiple use device, the Maxxis 5 is pre-programmed to control a diverse range of complex applications. Minebea Intec’ expert team of software engineers, in conjunction with industry specialists, has created software solutions that allow the unit to seamlessly integrate into any process. However, users who require it can utilise the easy to use IEC61131 programming language to implement their own unique functionalities.
The Maxxis 5 can be supplied with any of 6 standard applications pre-installed. These applications have been tested and perfected to ensure that you can integrate the unit directly upon delivery. However, for unique applications the Maxxis 5 can easily be re-programmed by your own technicians. Should you need any support with this task ,Minebea Intec’ software specialists will be happy to help you.
TECHNICAL SPECIFICATIONS
- Automatic control of weighing processes up to 4 points
- A wide range of housing options, cards, communication interfaces
- W & M certificate and Ex approval
- DAT, backup, report, simulation, alibi memory, OPC
- Ethernet TCP/IP, ModbuS TCP, RS232/485,USB, SD
- communication interfaces to choose from, I / O cards – control of valves, motors, pumps, etc
- built-in license to choose from : BATCHING, PHASE, COUNT, FLOW, IBC
Typical configuration NOs:
- 9405 159 00000
- 9405 359 00601
- 9405 359 00701
- 9405 159 00001
- 9405 159 00011
- 9405 159 00021
- 9405 159 00031
- 9405 159 00221
- 9405 159 00231
- 9405 159 00241
- 9405 159 00271
- 9405 159 00281
- 9405 159 00291
Accessories
- 9405 359 00101
- 9405 359 00041
- 9405 359 00121
- 9405 359 00131
- 9405 359 00321
- 9405 359 00071
- 9405 359 00171
- 9405 317 21511
- 9405 317 21541
- 9405 317 21551
- 9405 317 21761
- 9405 317 21771
- 9405 352 30301
- 9405 352 30311
- 9405 359 00411
- 9405 359 00421
- 9405 359 00431
- 9405 359 00441
- 9405 359 00811
- 9405 359 00821
- 9405 359 00831
- 9405 359 00841
- 9405 359 00861
- 9405 359 00871
- 9405 359 00911
- 9405 359 00921
- 9405 359 00931
- 9405 318 99991
